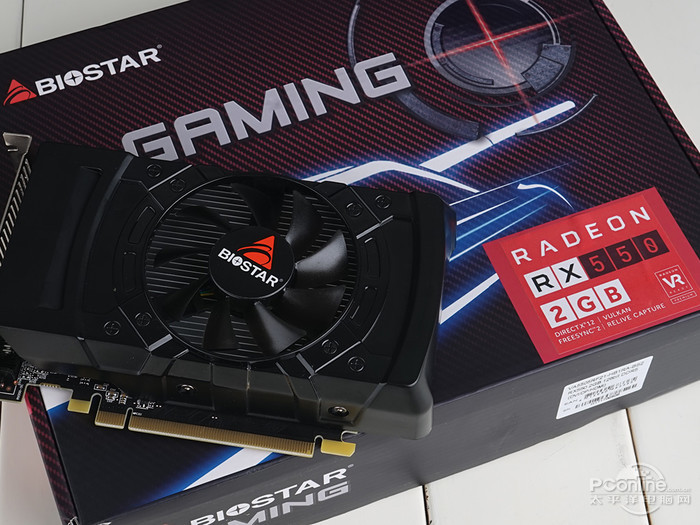

[pConline Evaluation] When it comes to Biostar motherboards, they are well-known, but what about Biostar graphics cards? Most people might not be familiar with them! In reality, Biostar has been producing graphics cards for quite some time now, primarily through OEM channels. Recently, I got my hands on the Biostar RX550 2GB overseas edition, and it seems like Biostar might be investing more in the retail market. Let's take a closer look at this product.
The Biostar RX550 2GB overseas edition has a reference price of 599 yuan. Let’s dive into the details!
No need for an external power supply, energy-efficient, and compact!

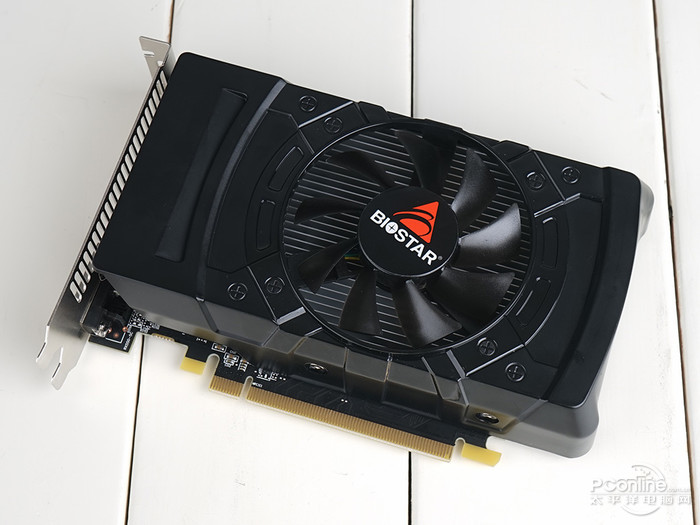

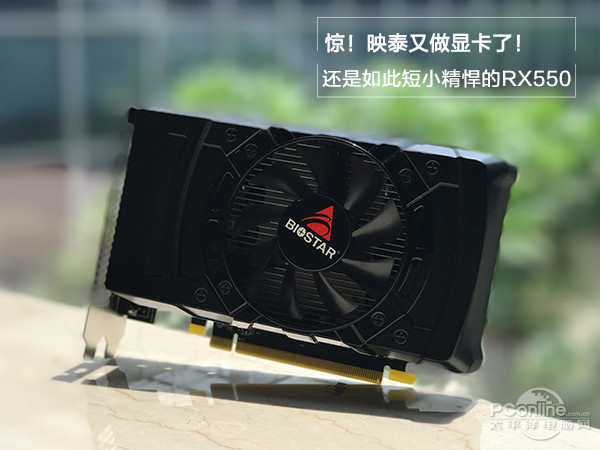

The Biostar RX550 2GB overseas version features a single-fan cooling design, with a predominantly black shroud that gives the card a sleek and compact appearance.

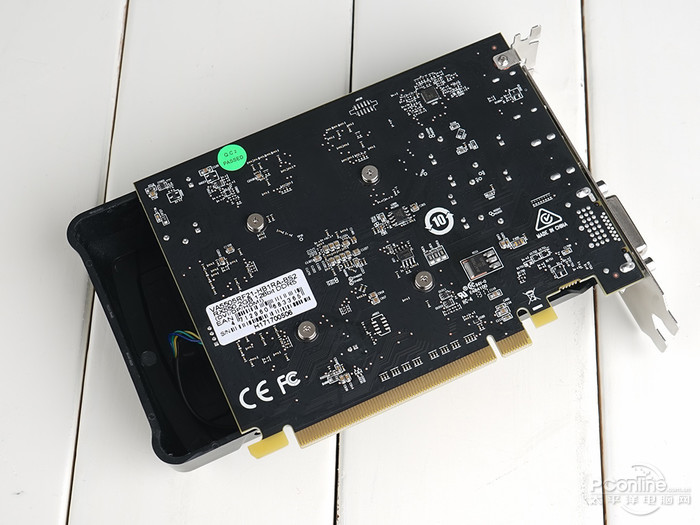

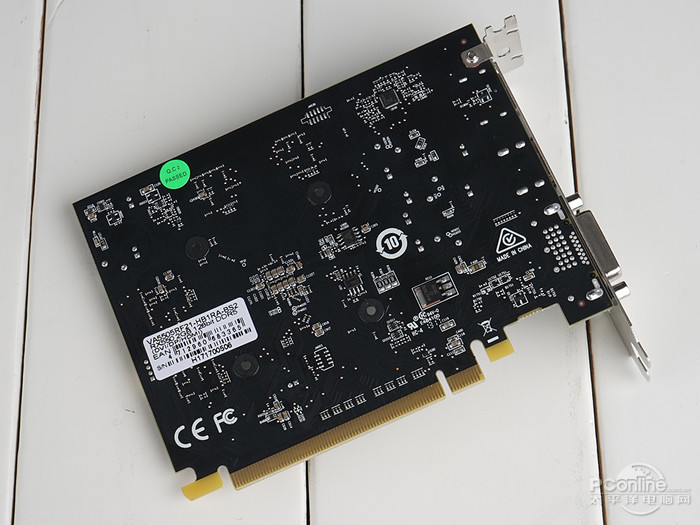

This card lacks a backplate, making it incredibly short. The shroud is even shorter than the PCB itself, but overall, it’s already a MINI-sized card!

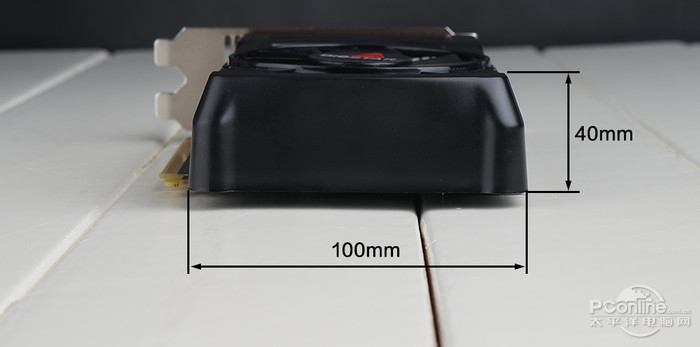

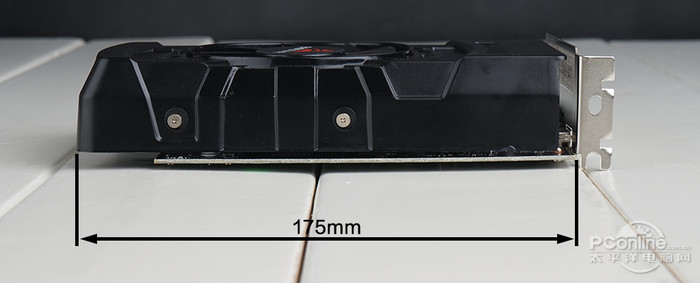

With dimensions of 175 × 100 × 40mm, this card is as long as an ITX graphics card. This size ensures compatibility with most commercially available chassis, and the lack of an external power supply makes it very friendly for older systems!

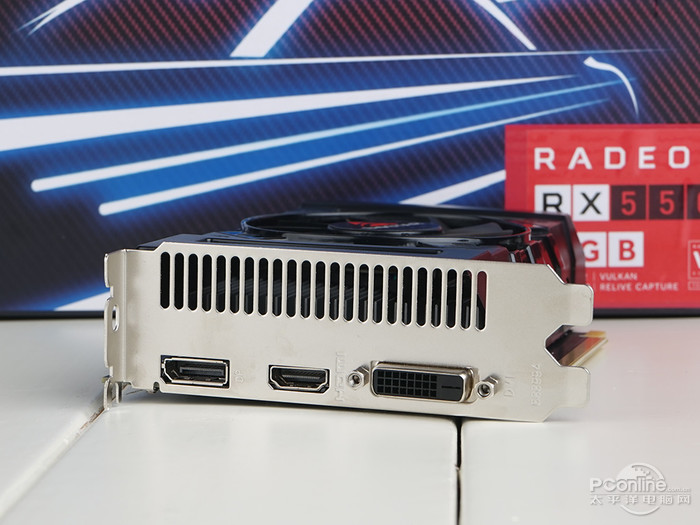

The I/O interface configuration includes DVI-D, HDMI, and DP ports, providing plenty of options for connectivity.
### Biostar RX550 2GB Overseas Parameter Specification Comparison
**Comparison Chart**
| Graphics | Biostar RX550 2GB Overseas | R7 350 |
|----------|---------------------------|--------|
| Core Code Name | Lexa Cape Verde XTL | Cape Verde XTL |
| Transistor Count | 2.2 billion | 1.5 billion |
| Process Technology | 14nm | 28nm |
| Stream Processors | 512 | 512 |
| Texture Units | 32 | 32 |
| ROPs | 16 | 16 |
| Memory Capacity | 2/4GB | 2GB |
| Memory Type | GDDR5 | GDDR5 |
| Memory Bit Width | 128-bit | 128-bit |
| Core Frequency | 1183MHz | 750MHz |
| Memory Frequency | 7000MHz | 4500MHz |
| Starting Price | 599 yuan | 599 yuan |

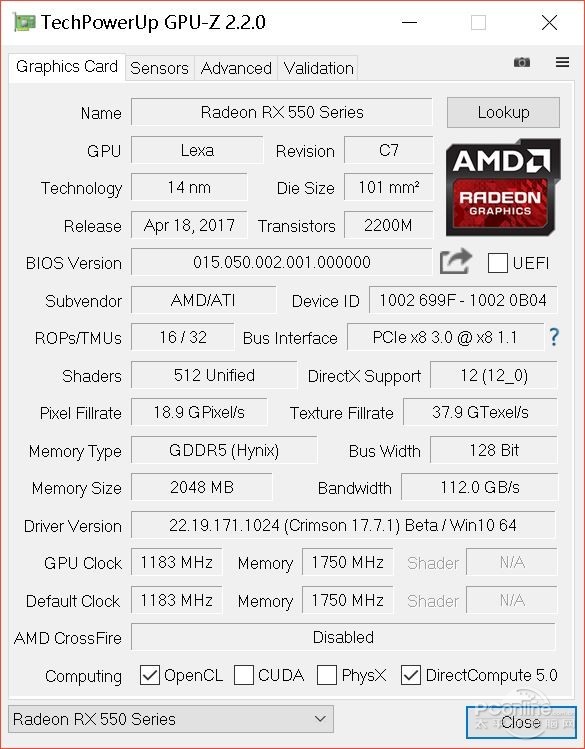

Specifications: The Biostar RX550 2GB overseas version uses the new Polaris 12 architecture with a 14nm manufacturing process, offering lower power consumption and higher efficiency. The core frequency is 1183MHz, and the memory frequency is 7000MHz.
Price-wise, the official quoted price for the Biostar RX550 2GB overseas version is 599 yuan. However, some sellers on Taobao are offering it for as low as 489 yuan, making it very attractive!
### Cooling and Power Design

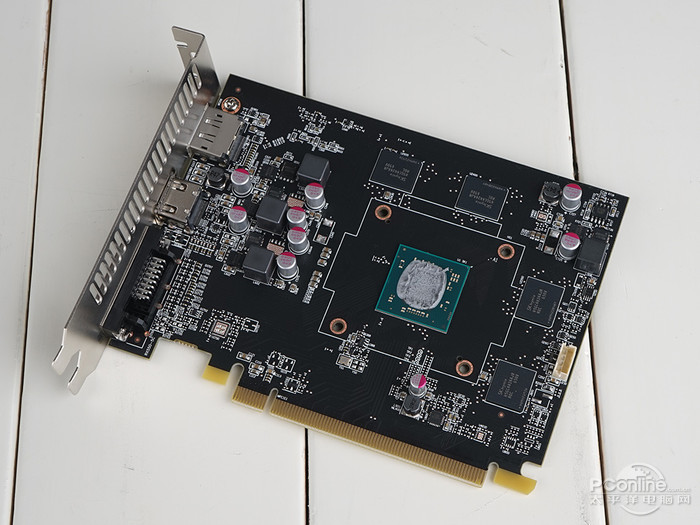

General low-end cards are usually easy to disassemble, and this one is no exception. Removing the four spring screws allows you to easily separate the heatsink from the PCB.

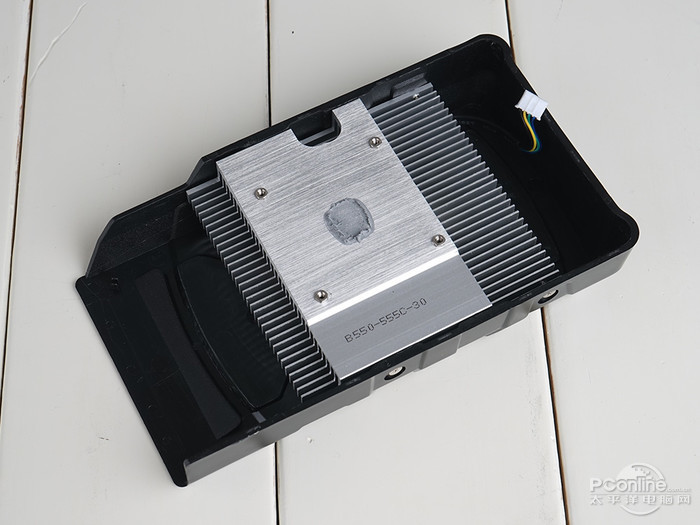

The Biostar RX550 2GB overseas version uses a large aluminum base with big fins combined with a 9cm ultra-quiet temperature control fan. This simple yet robust design is more than sufficient to handle the TDP of just 75W.

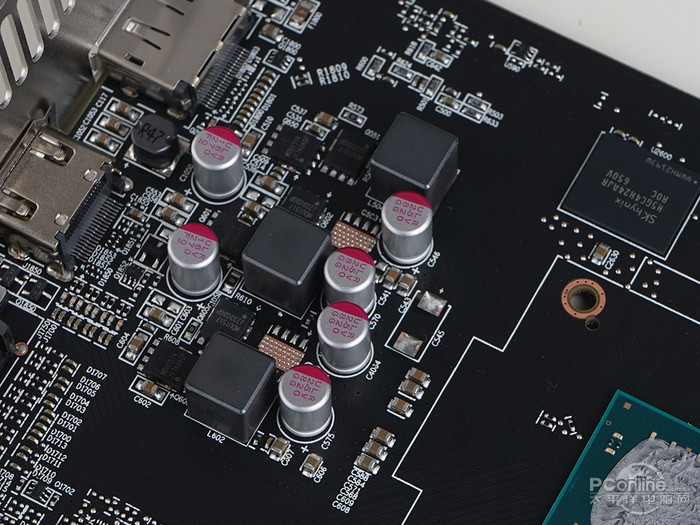

A three-phase digital power supply with 100% solid-state capacitors ensures high-quality materials. The PCB is compact and well-designed.
The same Hynix GDDR5 memory is used, with each chip having a capacity of 512MB, totaling 2GB with a memory frequency of 7000MHz.
What about performance? We’ll reveal that next!
### 3DMark Theory Test and Game Performance Test
#### Hardware Platform
| Component | Model |
|-------------------|---------------------------|
| CPU | Intel i7-7700K |
| Motherboard | ROG MAXIMUS IX FORMULA |
| Memory | Zhichi Trident Z RGB DDR4-3200 8G×2 |
| Storage | Plextor M6V 512GB+ A-DATA SU800 256G |
| Power Supply | Zhenhua Iceberg Kingdee 1300W |
| Graphics Cards | Biostar RX550 2GB Overseas Edition |
| | NVIDIA GT 1030 |
| | NVIDIA GTX1050 |
| | NVIDIA GTX 750Ti |
| | NVIDIA GTX 750 |
| | AMD RX560 |
| | Intel HD630 |
#### Software Platform
| Component | Version |
|-------------------|---------------------------|
| OS | Windows 10 Pro 64-bit |
| Graphics Drivers | NVIDIA GeForce 382.53 |
| | AMD Crimson Edition 16.6.1|
**Test Platform Description**: The test platform uses a consumer-grade Z270+i7 7700K top-end configuration. To better simulate real-world usage, we’ve also included the integrated Intel HD630 GPU for comparison. A total of seven graphics cards were tested, all with the latest drivers installed.
**Direct Results**

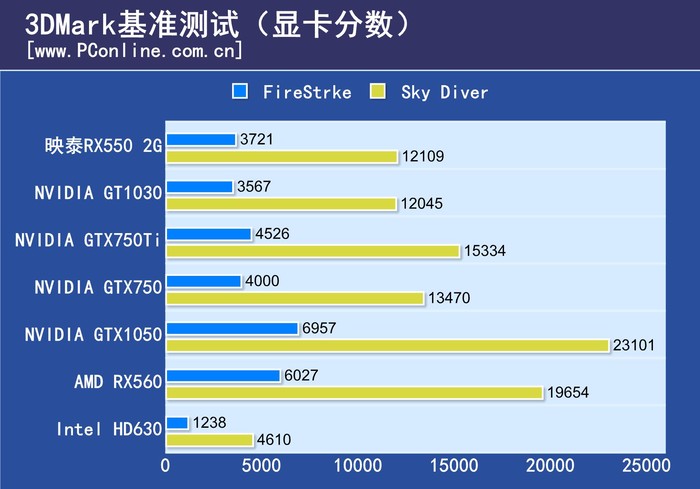

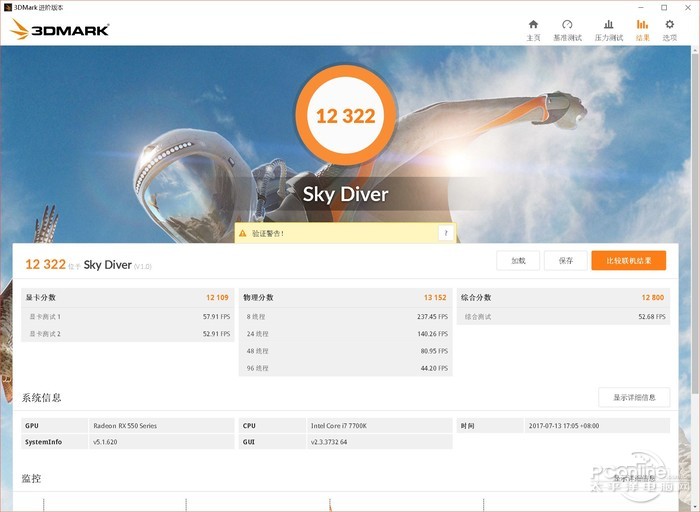

#### 3DMark Theory Performance Test

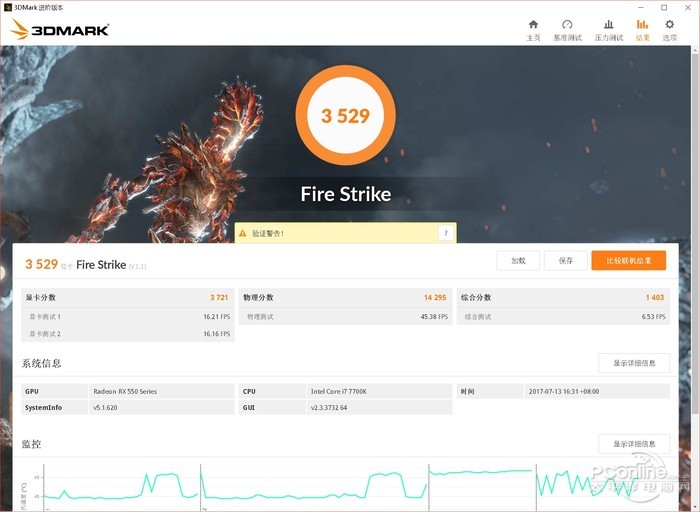

**Summary**: In the 3DMark theoretical performance tests, the Biostar RX550 2GB overseas version performs slightly better than the GT1030, with a noticeable gap compared to the RX560. Its positioning is clear, surpassing the nuclear display.
How does it perform in games?
#### Game Performance Test

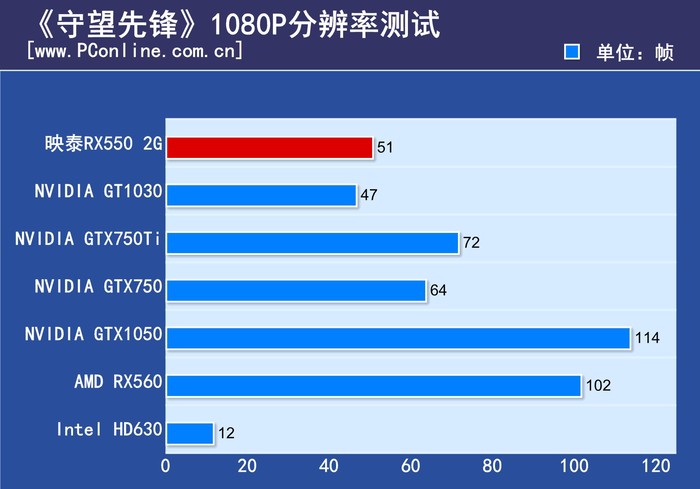

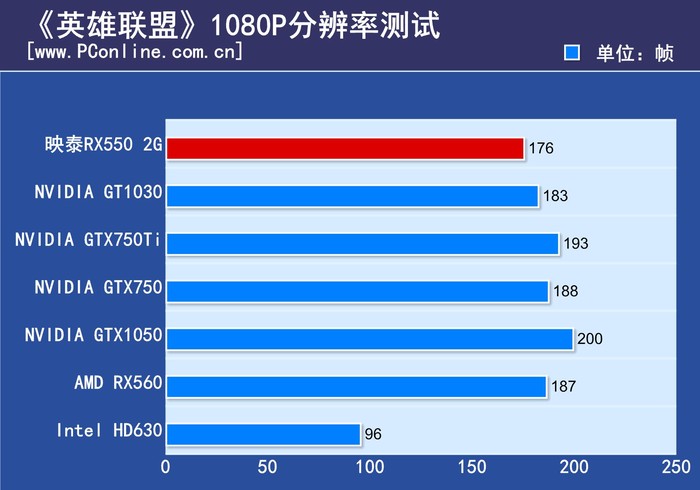

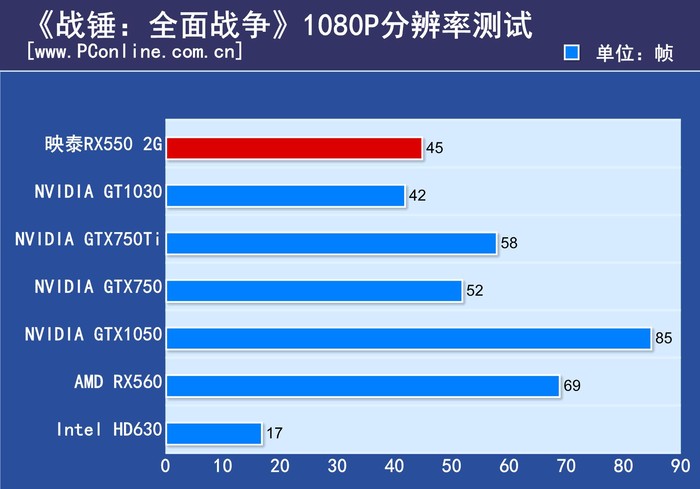

We selected several games suitable for the RX550 to test its performance. These include popular online games like “League of Legends†and “Watch Dogs 2,†as well as standalone titles like “Tomb Raider 10†and “Total War: Warhammer.†All games were tested at low graphical settings.

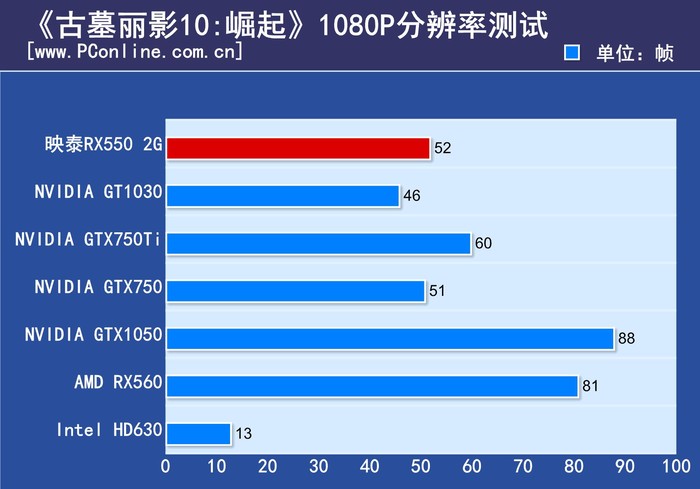

**Summary**: In standalone games like Tomb Raider 10 and Total War: Warhammer, the Biostar RX550 2GB overseas version outperforms the GT1030 by about 3-6 frames on average. Its performance in DX12 games is particularly impressive! Overall, it exceeds expectations for an entry-level graphics card.
It can be said that this entry-level graphics card can meet the demands of most players for high-quality online gaming.
#### Platform Power Test
To better understand the real-world power consumption of the Biostar RX550 2GB overseas version, we measured the platform power consumption during the 3DMark stress test, game benchmark, and standby mode.

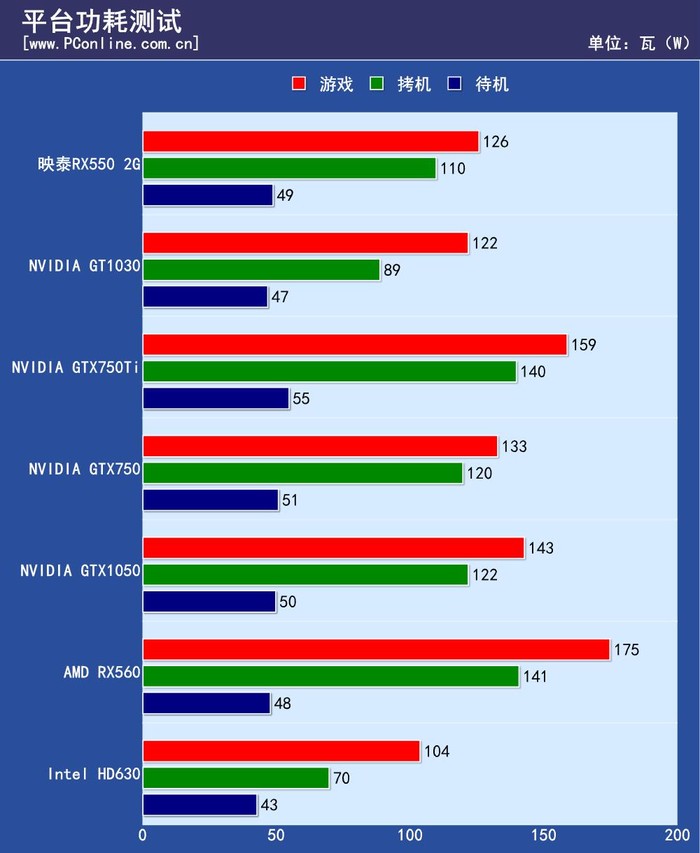

**Summary**: The game power consumption of the Biostar RX550 2GB overseas version is 126W, while the copy machine power consumption is 110W and the standby power consumption is 49W. The power consumption is slightly higher than the GT1030, but a 200W or more power supply is sufficient to meet its needs, making it very friendly to older machines.
#### Full Load Temperature Test

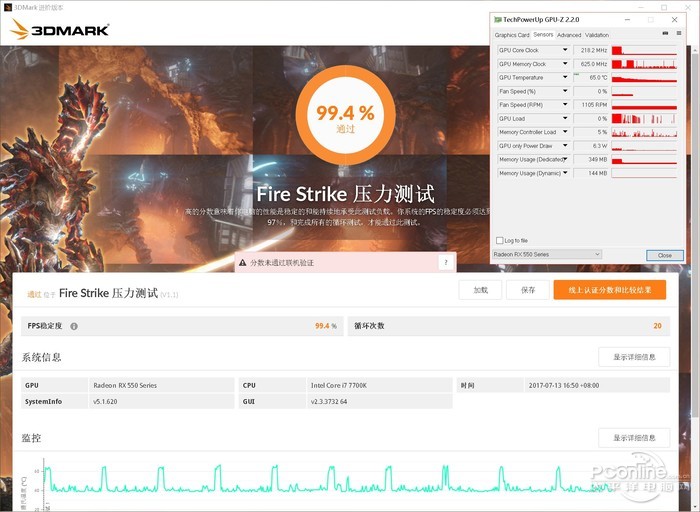

To test the extreme temperature of the Biostar RX550 2GB overseas version, we used the 3DMark FireStrike stress test program.
**Summary**: After running the 3DMark FireStrike stress test, the maximum temperature of the Biostar RX550 2GB overseas edition reached only 65°C. The performance is excellent, and we didn’t expect this small fan to perform so well!
#### Full Load Noise Test

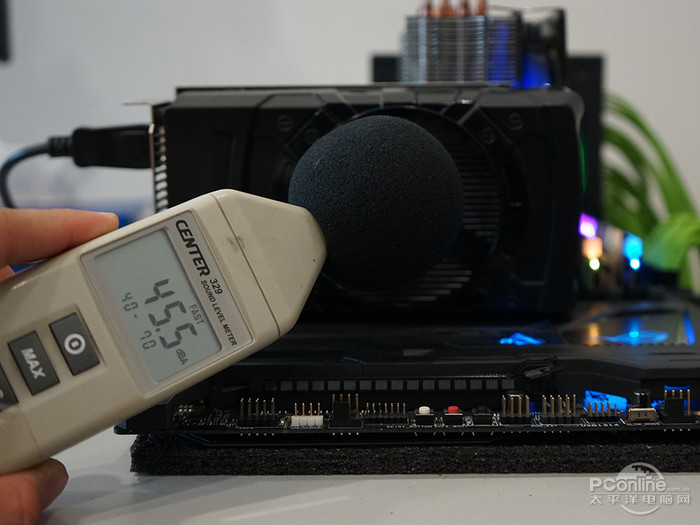

Here we used a sound meter to measure the fan noise during the 3DMark FireStrike stress test.
**Summary**: The maximum noise level during the test was 45.5 dB, which is very quiet and won’t feel noisy when placed inside a chassis!
**About Noise Levels**:
- 0 - 20 dB: Very quiet, almost imperceptible.
- 20 - 40 dB: Quiet, like a whisper.
- 40 - 60 dB: Normal indoor conversation.
- 60 - 70 dB: Noisy, nerve-wracking.
- 70 - 90 dB: Very noisy, damaging to nerves.
- 90 - 100 dB: Intense noise, impairing hearing.
- 100 - 120 dB: Unbearable, causing temporary deafness.
- 120 dB or more: Extreme paralysis or complete paralysis.
- 300 dB or more: Irreversible deafness within a 20 km radius.

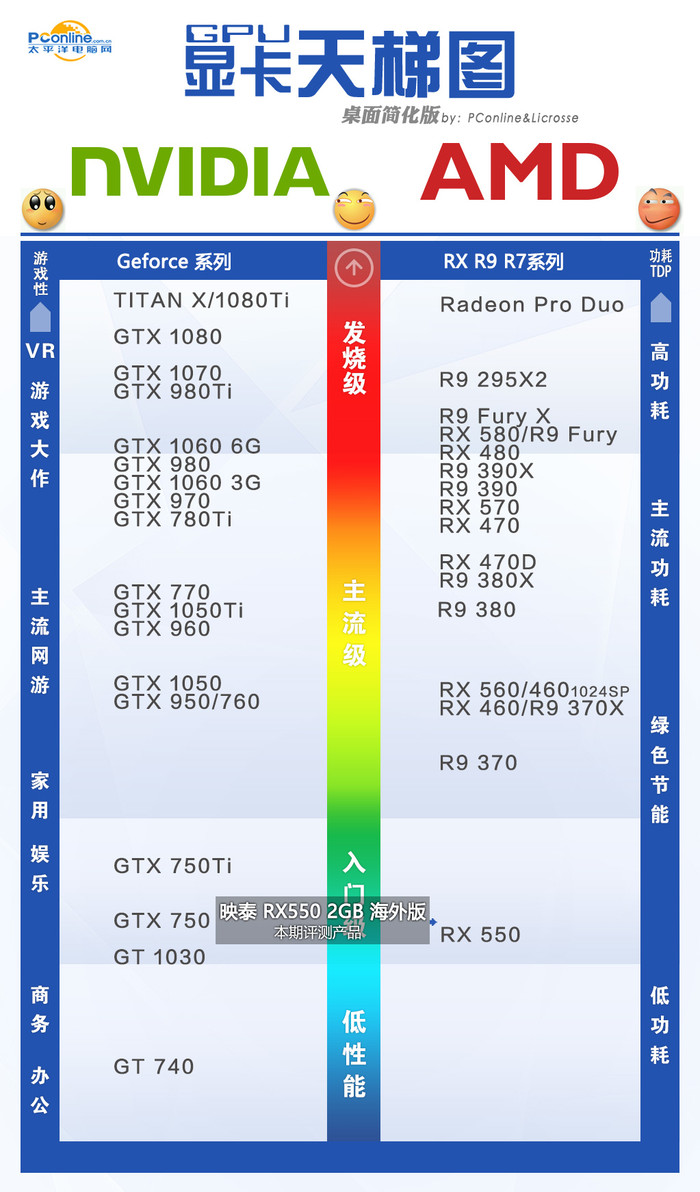

#### pConline Graphics Ladder Diagram
**Ladder Diagram Description**: Before the comprehensive test, we positioned the Biostar RX550 2GB overseas version slightly above the GT1030.
#### pConline Evaluation Summary
**Biostar RX550 2GB Overseas Edition Reference Price: Loading... Image Reviews Quotation Parameters Overview**
Firstly, from a performance perspective, the Biostar RX550 2GB overseas version is completely in line with the positioning of an entry-level product. It can smoothly run 1080P ultra-high quality online games, and in standalone games, it outperforms the GT1030, especially in DX12 games. Compared to older cards like the GTX750, it offers better support for DX12 applications.
In terms of price, although the Biostar RX550 2GB overseas version is quoted at 599 yuan like many other RX550s, there are sellers on Taobao offering it for as low as 489 yuan, making it more appealing than the GT1030! Additionally, this card has ultra-low power consumption, a compact size, and no need for an external power supply, making it perfect for users looking to upgrade their older machines.
**Advantages and Disadvantages Summary**
**Advantages**
1. Performance exceeds the GT1030 and all nuclear significant, entering the mainstream alone.
2. Ultra-low power consumption, ultra-low power requirements, friendly to old machines.
3. Support for DX12 and 4K 60Hz video output, better compatibility.
4. Short size, compatible with most chassis.
**Disadvantages**
1. Lack of a backplate, which may affect durability in certain cases.
**Comparison**
| Graphics | Biostar RX550 2GB Overseas | R7 350 |
|----------|---------------------------|--------|
| Core Code Name | Lexa Cape Verde XTL | Cape Verde XTL |
| Transistor Count | 2.2 billion | 1.5 billion |
| Process Technology | 14nm | 28nm |
| Stream Processors | 512 | 512 |
| Texture Units | 32 | 32 |
| ROPs | 16 | 16 |
| Memory Capacity | 2/4GB | 2GB |
| Memory Type | GDDR5 | GDDR5 |
| Memory Bit Width | 128-bit | 128-bit |
| Core Frequency | 1183MHz | 750MHz |
| Memory Frequency | 7000MHz | 4500MHz |
| Starting Price | 599 yuan | 599 yuan |
**Hardware Platform**
| Component | Model |
|-------------------|---------------------------|
| CPU | Intel i7-7700K |
| Motherboard | ROG MAXIMUS IX FORMULA |
| Memory | Zhichi Trident Z RGB DDR4-3200 8G×2 |
| Storage | Plextor M6V 512GB+ A-DATA SU800 256G |
| Power Supply | Zhenhua Iceberg Kingdee 1300W |
| Graphics Cards | Biostar RX550 2GB Overseas Edition |
| | NVIDIA GT 1030 |
| | NVIDIA GTX1050 |
| | NVIDIA GTX 750Ti |
| | NVIDIA GTX 750 |
| | AMD RX560 |
| | Intel HD630 |
**Software Platform**
| Component | Version |
|-------------------|---------------------------|
| OS | Windows 10 Pro 64-bit |
| Graphics Drivers | NVIDIA GeForce 382.53 |
| | AMD Crimson Edition 16.6.1|
**Advantages and Disadvantages Summary**
**Advantages**
1. Performance exceeds the GT1030 and all nuclear significant, entering the mainstream alone.
2. Ultra-low power consumption, ultra-low power requirements, friendly to old machines.
3. Support for DX12 and 4K 60Hz video output, better compatibility.
4. Short size, compatible with most chassis.
**Disadvantages**
1. Lack of a backplate, which may affect durability in certain cases.
In conclusion, the Biostar RX550 2GB overseas version is an excellent choice for budget-conscious gamers who need a reliable and efficient graphics card.
