Thermostat is a type of automatic control device that includes components like temperature switches and temperature protectors. These devices physically change their internal structure in response to temperature variations in the environment, leading to specific functions such as turning circuits on or off. A thermostat can also be referred to as a temperature controller, which receives temperature signals from a protector and then issues commands to control the operation of a device, helping to maintain the desired temperature and save energy. Thermostats are widely used in various applications, including home appliances, motors, refrigeration systems, and heating units.
**Electronic Thermostat Instructions**

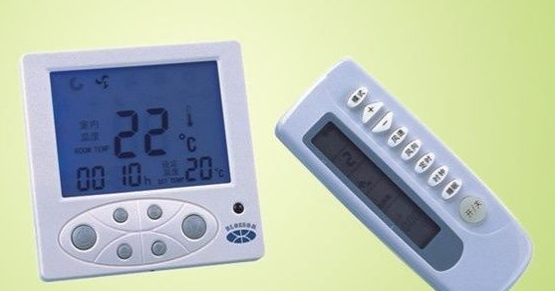

An LCD temperature controller is a type of temperature regulator that features a liquid crystal display, allowing users to easily view the set temperature and ambient temperature. The instruction manual serves as a guide for consumers, helping them understand how to use the device effectively. Many people rely on these manuals when they first start using a product, especially if it doesn't work immediately. So, when it comes to LCD thermostats, what are the operating instructions? How much do you know about them?
**What is a Liquid Crystal Temperature Controller?**
A liquid crystal temperature controller is a device equipped with an LCD screen, offering clear display of set temperature and room temperature. It is designed for ease of use and provides a user-friendly interface.
**The Importance of the Thermostat Instruction Manual**
A well-written instruction manual provides users with accurate, clear, and concise guidance, enhancing their overall experience. A good manual should act as a reference, helping users quickly find solutions when they encounter problems during use.
**Features of LCD Thermostats:**
**(1) Functions of the Thermostat**
- On/off control of room temperature
- Clock function (optional)
- Indoor temperature measurement and display
- Sleep mode (optional)
- Manual or automatic fan speed control (three speeds)
- Remote control function (optional)
- Cold/hot mode switching
- Blue backlight (optional)
- Multi-time timer on/off function (optional)
**(2) Features of the Thermostat**

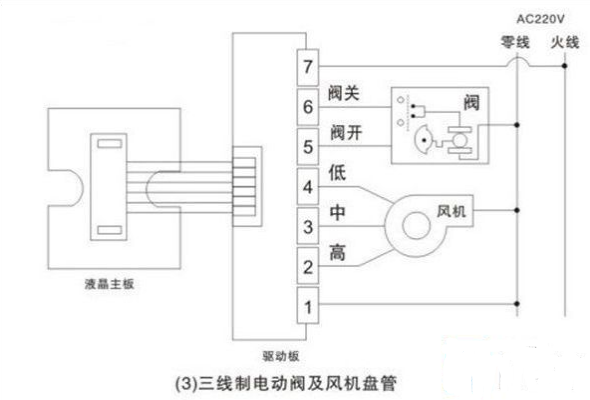

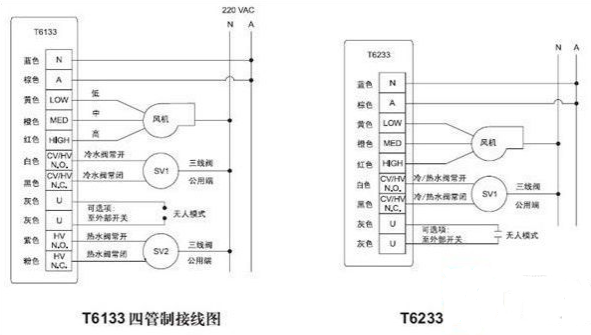

The temperature controller uses a microcontroller to compare the measured temperature with the set point, controlling components like fan coils, electric valves, dampers, and air outlets in central air conditioning systems. This helps maintain a constant and comfortable indoor environment.
**Using Some Features of the LCD Thermostat**
**(1) Adjustment Method of Mechanical Thermostat**
The mechanical thermostat is easy to adjust. Once installed, simply turn the switch on the right side to the "on" position and set the desired temperature by aligning the temperature scale with the center of the thermostat. When the indicator light is on, the system is active; when it's off, the system is in standby.
**(2) Adjustment Method of Electronic Thermostat**
Modern electronic thermostats usually have an LCD display, available in push-button or touch-screen versions. While the operation differs slightly between types, the basic process remains similar.
**Summary**
LCD thermostats are increasingly popular among consumers due to their convenience and accuracy. However, they are more commonly found in commercial settings like supermarkets, malls, and hotels. Through this introduction, we hope to help everyone better understand how thermostats work and encourage further exploration into their features and benefits. Keep an eye out for the latest updates and information about LCD thermostats.
**Electronic Thermostat Adjustment Method**
**Tools/Equipment**
- Electronic thermostat
- Reference diagram
- Screwdriver
- Wires

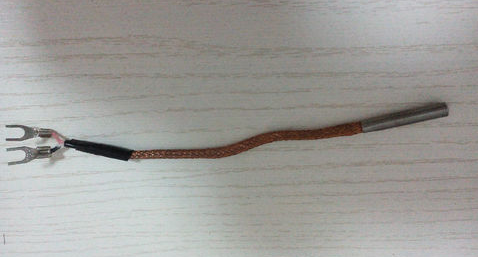

- Temperature probe

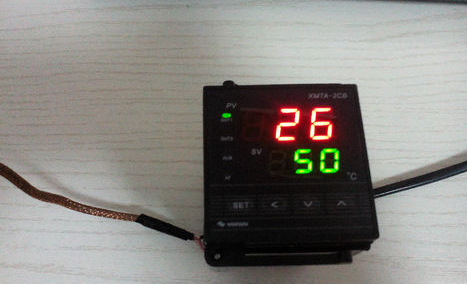

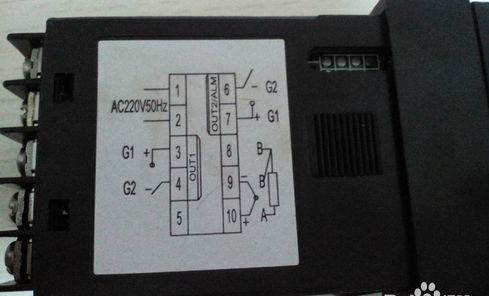

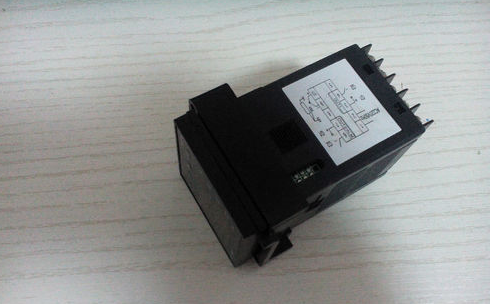

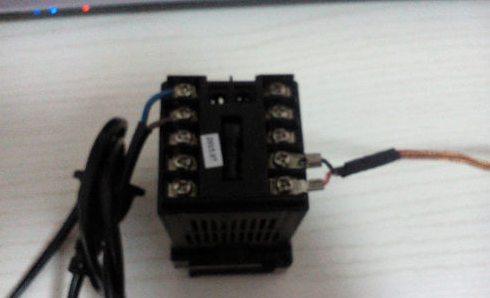

When I received an electronic thermostat, I carefully studied the accompanying schematic diagram and understood its wiring configuration. After connecting the probe and wires, I conducted a test to verify my understanding. Using a multimeter, I checked the relay output and confirmed that the connections were correct. It was a learning experience, and now I feel more confident in using such devices.
Make sure to pay attention to the polarity of the temperature sensor when conducting experiments to avoid any damage. With careful setup and testing, the thermostat can accurately regulate temperature and perform reliably.
Always be cautious when handling the temperature sensor to ensure correct polarity and safe operation.
